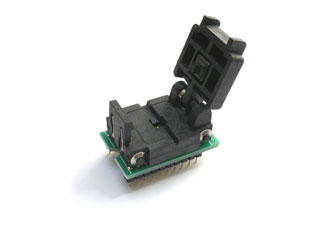

TSU-D08/WS08-3X2


Описание: - Универсальный переходник с DIP-8 на USON-8(DFN-8). Аналог AE-WS8-U4 фирмы ФИТОН. Для микросхем корпусе 3мм * 2мм, шаг 0,5мм.

Совместимость: Может быть использован для работы с любыми микросхемами в этом корпусе, на любых программаторах.

Разводка панельки: один-в-один (1=1, 2=2, 3=3...).

Список поддерживаемых микросхем:

ACE Technology Co.LTD.: ACE24AC02 ACE24AC04 ACE24AC08 ACE24AC128 ACE24AC16 ACE24AC256 ACE24AC32D ACE24AC512 ACE24AC64 ACE24C02B ACE24C04B ACE24C08B ACE24C16B ACE24C256C ACE24C32 ACE24C32B ACE24C512C ACE24C512D ACE24C64 ACE24C64B ACE24LA02 ACE24LA04 ACE24LA08 ACE24LA16A ACE24LA256A ACE24LA512A ACE24LA64A ACE24LC02 ACE24LC04 ACE24LC08 ACE24LC16 ACE25C100C ACE25C200C ACE25C400C ACE25C512C ACE25Q100G ACE25Q200G ACE25Q400G ACE25Q512G ACE25Q800G ACE25QA100G ACE25QA200G ACE25QA400G ACE25QA512G ACE25QA800G ACE93C46A ACE93C56A ACE93C66A

Adesto Technologies: AT25F512B RM24C128C-L RM24C128DS RM24C256C-L RM24C256DS RM24C32C-L RM24C32DS RM24C512C-L RM24C64C-L RM24C64DS RM25C128C-L RM25C128DS RM25C256C-L RM25C32C-L RM25C32DS RM25C512C-L RM25C64C-L RM25C64DS

AiT Semiconductor Inc.: A24C02 A24C04 A24C08 A24C128 A24C16 A24C256 A24C32 A24C64

Amic Technology Inc.: A25L010A A25L020C A25L512A A25P010 A25P020 A25P040 A25P512

Aplus Flash Technology: AF24BC32

Artschip Inc.: 24LC01B 24LC02B 24LC04B 24LC08B 24LC16B

ATC Semiconductor: ATC24LC02B ATC24LC04B ATC24LC08B

Atmel Corporation: AT24C01B AT24C01C (01C) AT24C01D (01D) AT24C02B AT24C02C (02C) AT24C02D (02D) AT24C04B AT24C04C (04C) AT24C04D (04D) AT24C08B AT24C08C (08C) AT24C08D (08D) AT24C128B (2BC) AT24C128C (2DC) AT24C16B AT24C16C (16C) AT24C16D (16D) AT24C32C (32C) AT24C32D (32D) AT24C32E (32E) AT24C512C (2FC) AT24C64C (64C) AT24C64D (64D) AT24CS01 (N1) AT24CS02 (N2) AT24CS04 (N4) AT24CS08 (N8) AT24CS16 (NA) AT24CS32 (NB) AT24CS64 (NC) AT25010A AT25020A AT25040A AT25080A AT25080B AT25160A AT25160B AT25320A AT25320B AT25640A AT25640B AT25F512B AT93C46D AT93C56A AT93C66A AT93C86A

AXElite Technology Co.: AX24C02A AX24C04A AX24C08A AX24C16A AX24C32A

BestowMascot Technology Ltd.: BM24C02D BM24C04D BM24C08D BM24C128D BM24C16D BM24C256D BM24C32D BM24C512D BM24C64D

Boya Microelectronics: BY25Q10A BY25Q20A BY25Q40A BY25Q512A

Chipswinner El.Co.: CW24C02 CW24C02B CW24C04 CW24C04A CW24C08 CW24C08B CW24C16 CW24C16A CW24C32 CW24C64

Coreriver Semiconductor Inc.: CR24C01 CR24C02 CR24C04 CR24C08 CR24C128 CR24C16 CR93C46

E-CMOS Corporation: EC24C02A EC24C04A EC24C08A EC24C16A EC24C32A EC93C46A EC93C56A EC93C66A

Eon Silicon Dev.: EN25S10 EN25S20 EN25S40

First-Rank Technology Co.: T24C02A T24C04A T24C08A T24C16A

Fremont Micro Devices: FT24C02A FT24C04A FT24C08A FT24C16A

Fudan Microelectronics: FM24C02B FM24C04B FM24C04D FM24C08B FM24C08D FM24C16B FM24C16D FM24C32A FM24C512D FM24C64A FM24C64D FM25080 FM25128 FM25160 FM25256 FM25320 FM25512 FM25640 FM25F005 FM25F01 FM25F02 FM25F02A FM25F04A FM25Q08 FM93C46A FM93C56A FM93C66A

Giantec Semiconductor Inc.: GT24C02 GT24C02A GT24C04 GT24C08 GT24C08A GT24C128A GT24C128B GT24C16 GT24C16A GT24C256 GT24C256A GT24C32A GT24C32B GT24C512A GT24C64 GT25C08 GT25C16 GT25C32 GT25C32A GT93C46A GT93C66A

GigaDevice Semiconductor: GD25D05B GD25D10B GD25LQ05B GD25LQ10B GD25LQ20B GD25LQ40 GD25LQ40B GD25LQ80 GD25LQ80B GD25Q10 GD25Q20 GD25Q20B GD25Q21B GD25Q40 GD25Q40B GD25Q41B GD25Q512 GD25VQ21B GD25VQ41B

H&M Semiconductor Co.Ltd: HM24C02 HM24C04 HM24C08 HM24C16 HM24C32 HM24C64

HuaHong ZealCore Co.: BH25Q40A BH25Q80A HE24C02 HE24C04 HE24C08 HE24C16 HE24C32 HE93C46 HE93C56 HE93C66

Hua Jie Tech: K24C02 K24C02C K24C02D K24C04 K24C08 K24C08C K24C08D K24C16 K24C16B K24C32 K93C46 K93C56 K93C66

Integrated Silicon Solution Inc.: IS25CD512 IS25LP016D IS25LP080D IS25LQ010B IS25LQ020 IS25LQ020B IS25LQ025B IS25LQ040 IS25LQ040B IS25LQ512B IS25WP016 IS25WP016D IS25WP020 IS25WP020D IS25WP040 IS25WP040D IS25WP080 IS25WP080D IS25WQ020 IS25WQ040

LIZE Electronic Technology Co.: L24C128A L24C32A L24C64A

Macronix Co.: MX25L1005 MX25L1005C MX25L1006E MX25L1021E MX25L2006E MX25L512 MX25L5121E MX25L512C MX25L512E MX25L512F MX25R1035F MX25R1635F MX25R2035F MX25R4035F MX25R512F MX25R8035F MX25U1001E MX25U5121E MX25V1006E MX25V1035F MX25V1635F MX25V2035F MX25V4035F MX25V512 MX25V512C MX25V512E MX25V512F MX25V8035F

Microchip Technology Inc.: 24AA00 24AA01 24AA014 24AA014H 24AA01H 24AA02 24AA024 24AA024H 24AA025 24AA02H 24AA04 24AA04H 24AA08 24AA08H 24AA128 24AA16 24AA16H 24AA32A 24AA32AF 24AA52 24AA64 24AA64F 24C00 24C01C 24C02C 24FC128 24FC64 24FC64F 24LC00 24LC014 24LC014H 24LC01B 24LC01BH 24LC024 24LC024H 24LC025 24LC02B 24LC02BH 24LC04B 24LC04BH 24LC08B 24LC08BH 24LC128 24LC16B 24LC16BH 24LC32A 24LC32AF 24LC64 24LCS52 24VL024 24VL024H 24VL025 25AA010A 25AA020A 25AA040A 25AA080C 25AA080D 25AA160C 25AA160D 25AA320A 25AA640 25LC010A 25LC020A 25LC040A 25LC080C 25LC080D 25LC160C 25LC160D 25LC320A 25LC640 PIC10F200 PIC10F202 PIC10F204 PIC10F206 PIC10F220 PIC10F222 PIC10F320 PIC10F322 PIC10LF320 PIC10LF322 PIC12F1501 PIC12F508 PIC12F509 PIC12F510 PIC12F519 PIC12LF1501

Micron Technology: M25P40V

Numonyx: M25P05-A

ON Semiconductor: CAT24C01 CAT24C02 CAT24C03 CAT24C04 CAT24C05 CAT24C08 CAT24C128 CAT24C16 CAT24C256 CAT24C32 CAT24C512 CAT24C64 CAT24M01 CAT93C46 CAT93C46R CAT93C56 CAT93C57 CAT93C66 CAV25640

Paragon Technology Limited: PN25F04A PN25F08

Rohm Semiconductor: BR24T01 BR24T02 BR24T04 BR24T08 BR24T128 BR24T16 BR24T32 BR24T64

SST Inc.: SST25WF020A SST25WF040B SST25WF080B

Winbond Corporation: W25Q20BW W25Q20CL W25Q40BW W25Q40CL W25Q80BW W25X05CL W25X10CL W25X20CL W25X40CL
